Endless Swan Frame

Endless Swan Frame

$219.00 USD
$219.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

This frame requires a 165 Raised Heel boot.

It is NOT compatible with UFS or Powerslide Trinity boots. Not sure? Click here.

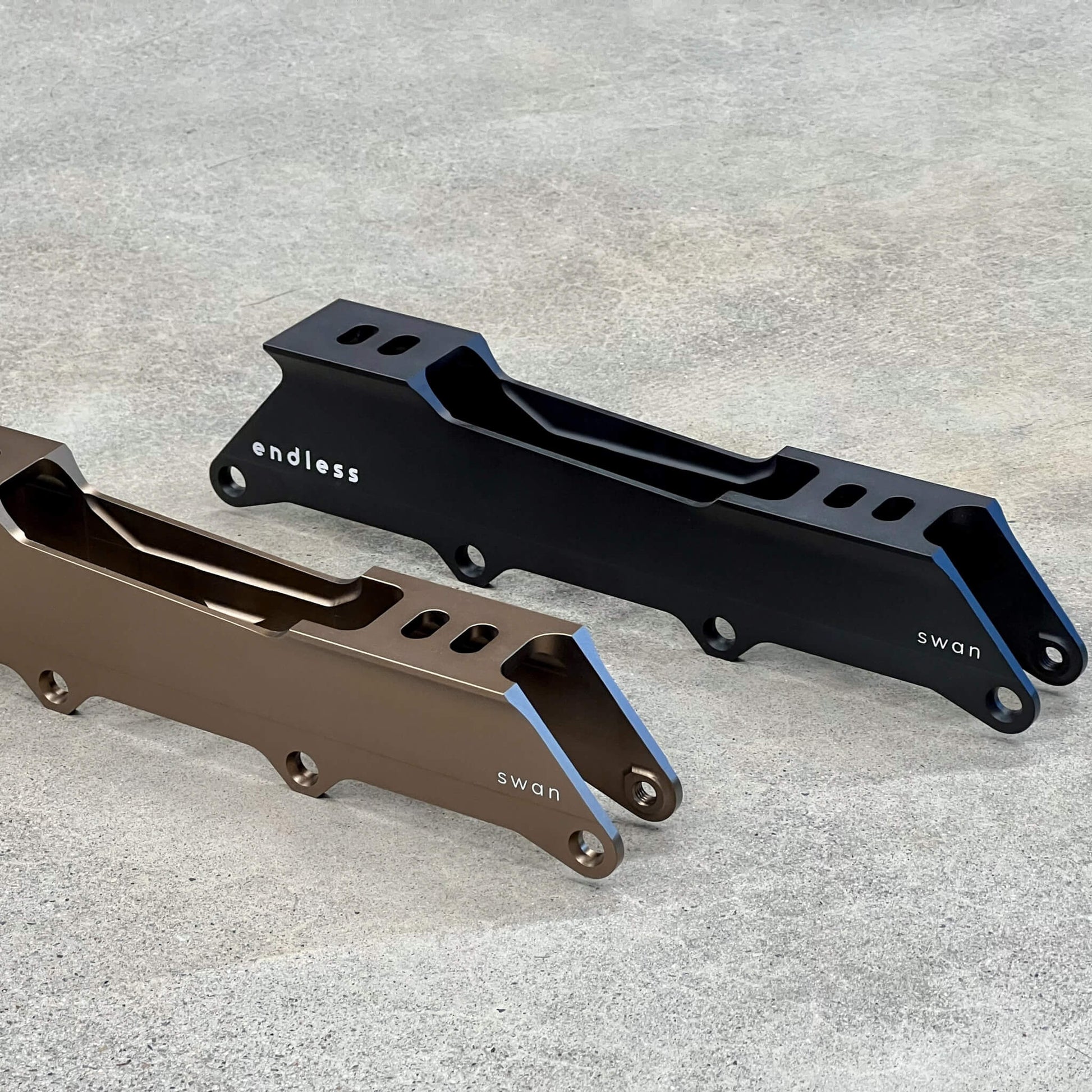

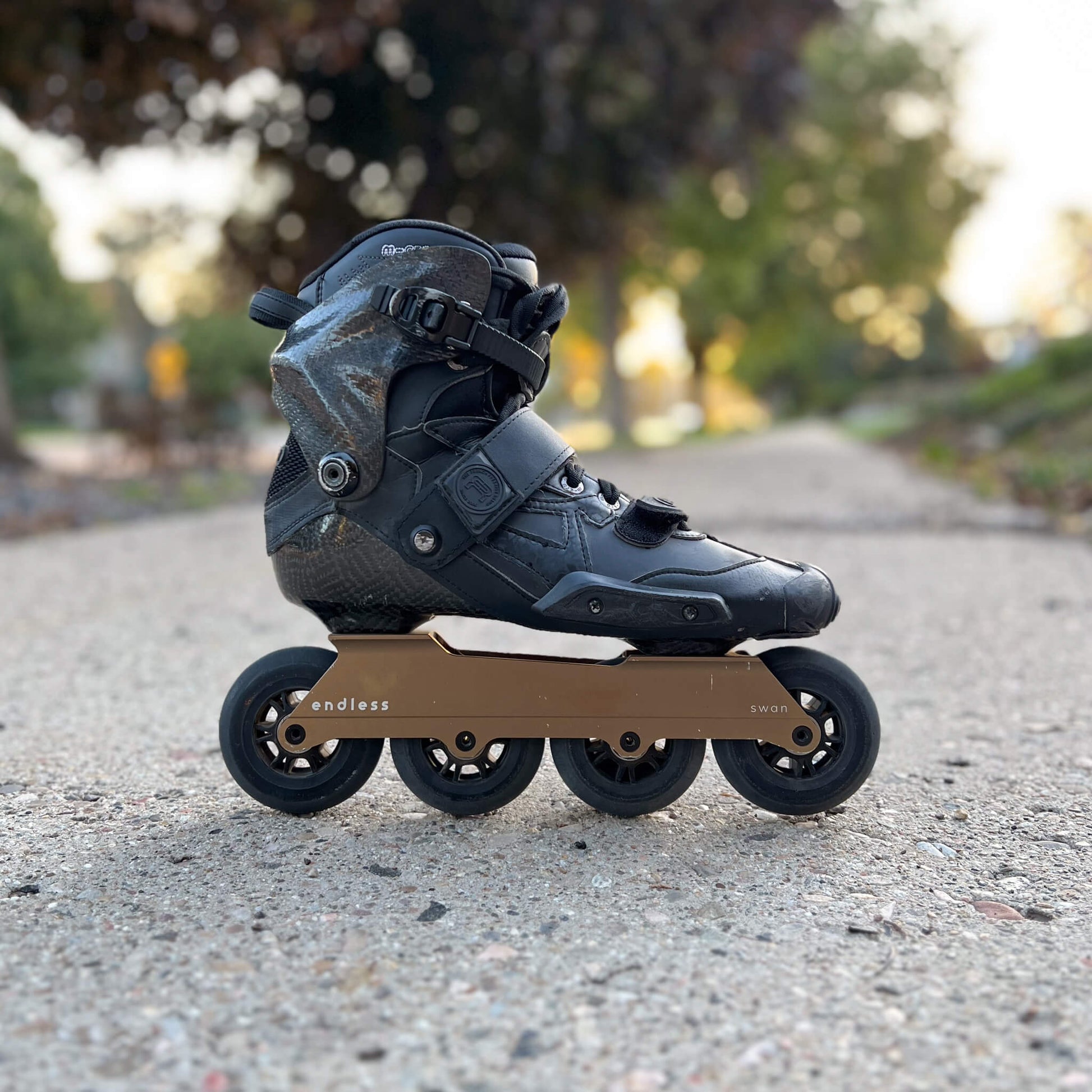

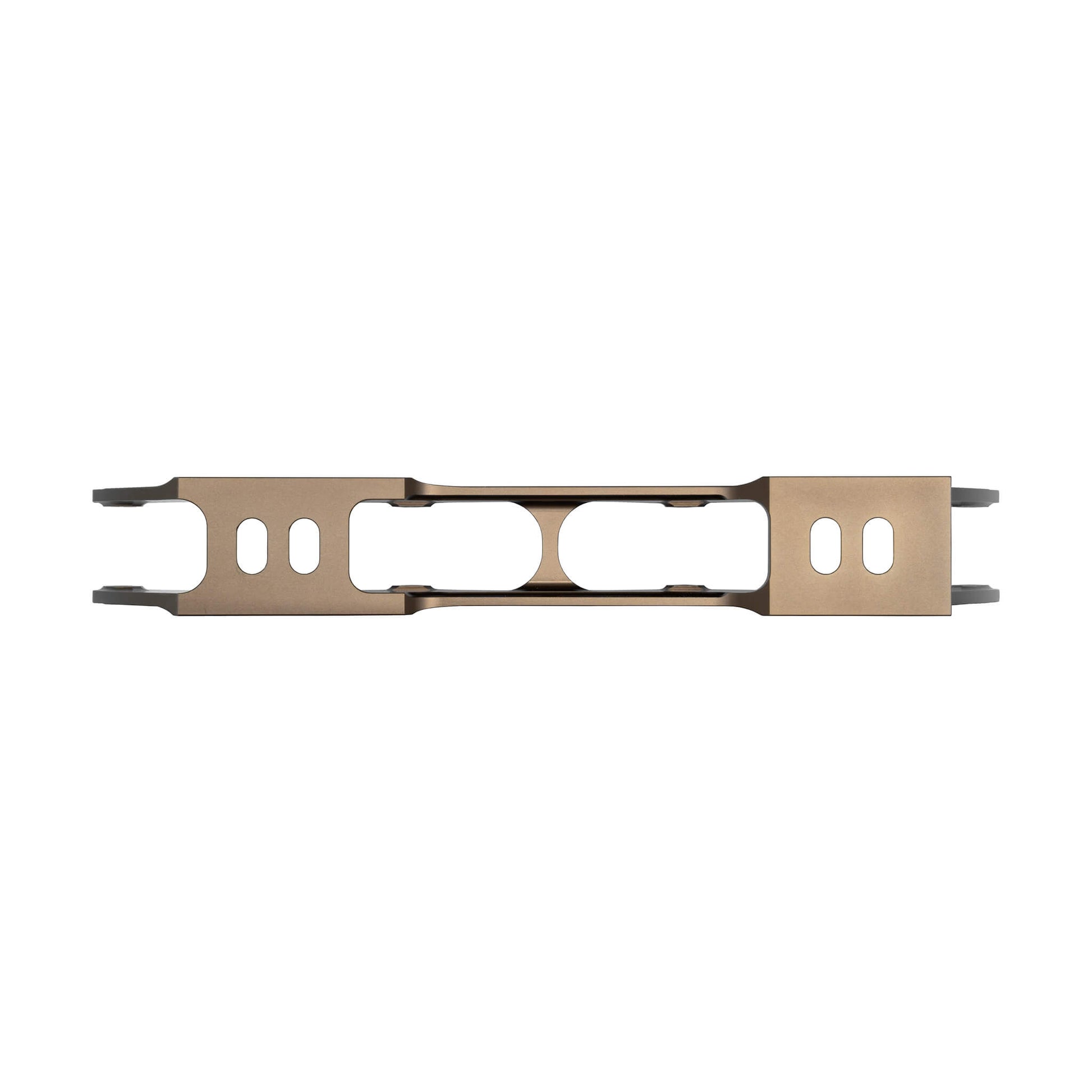

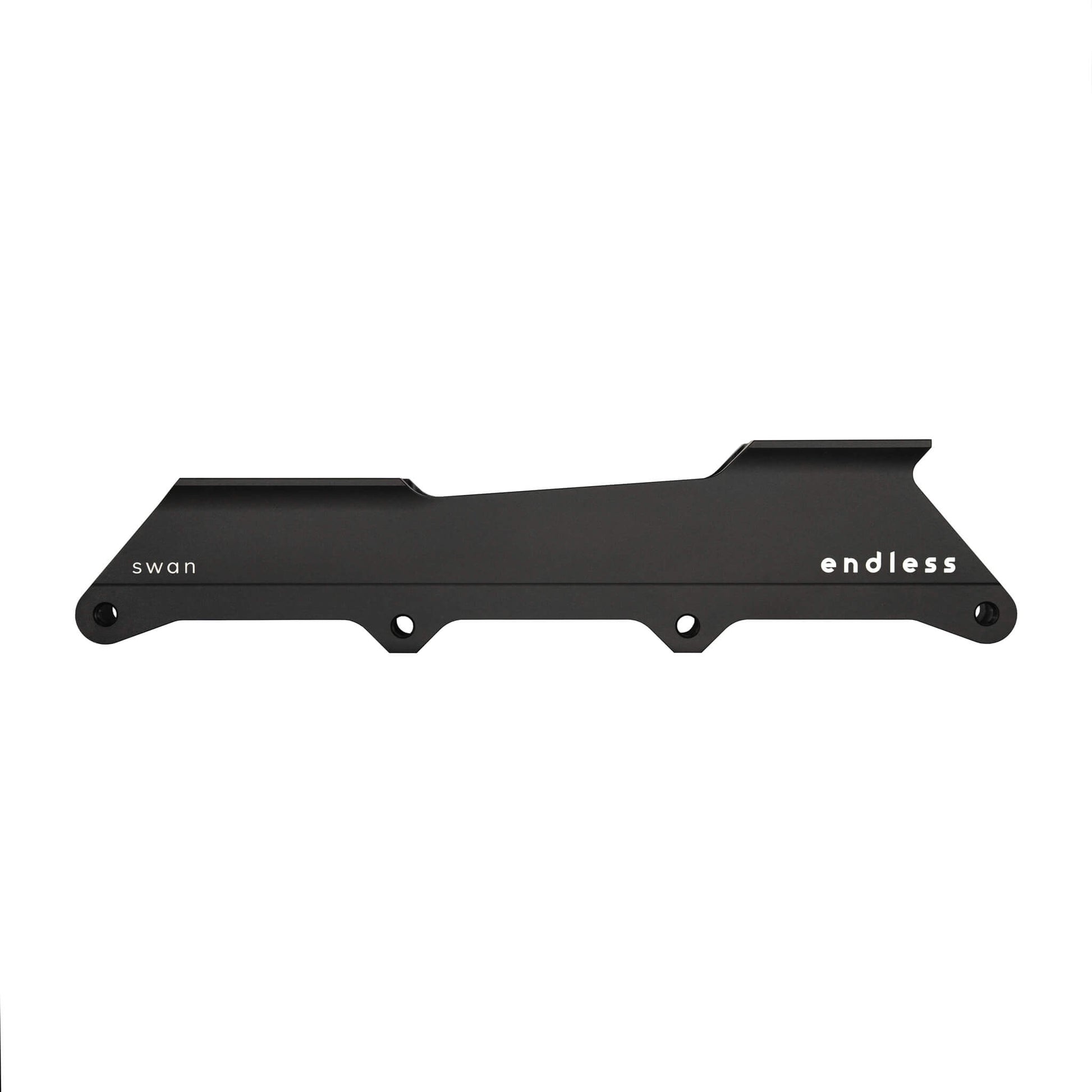

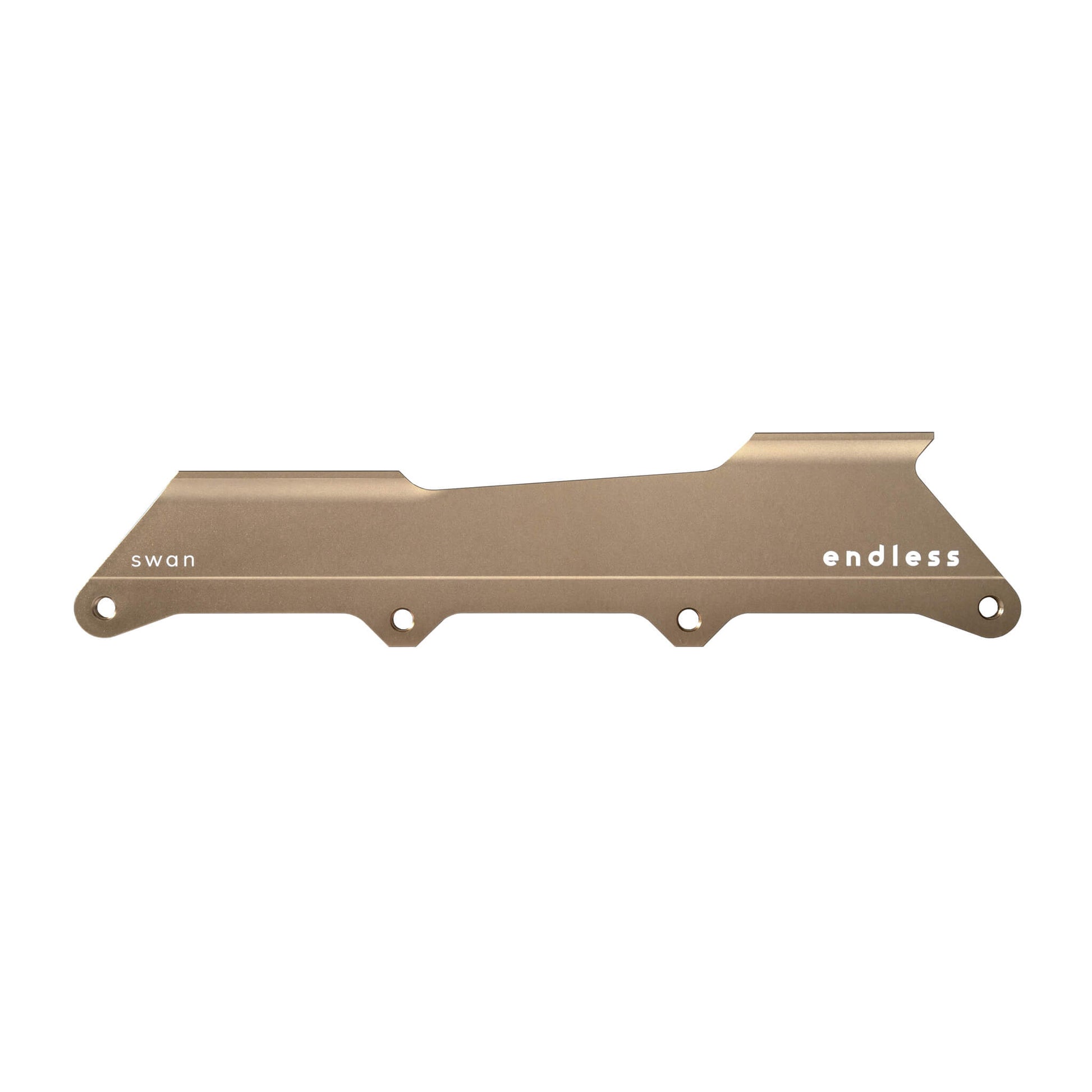

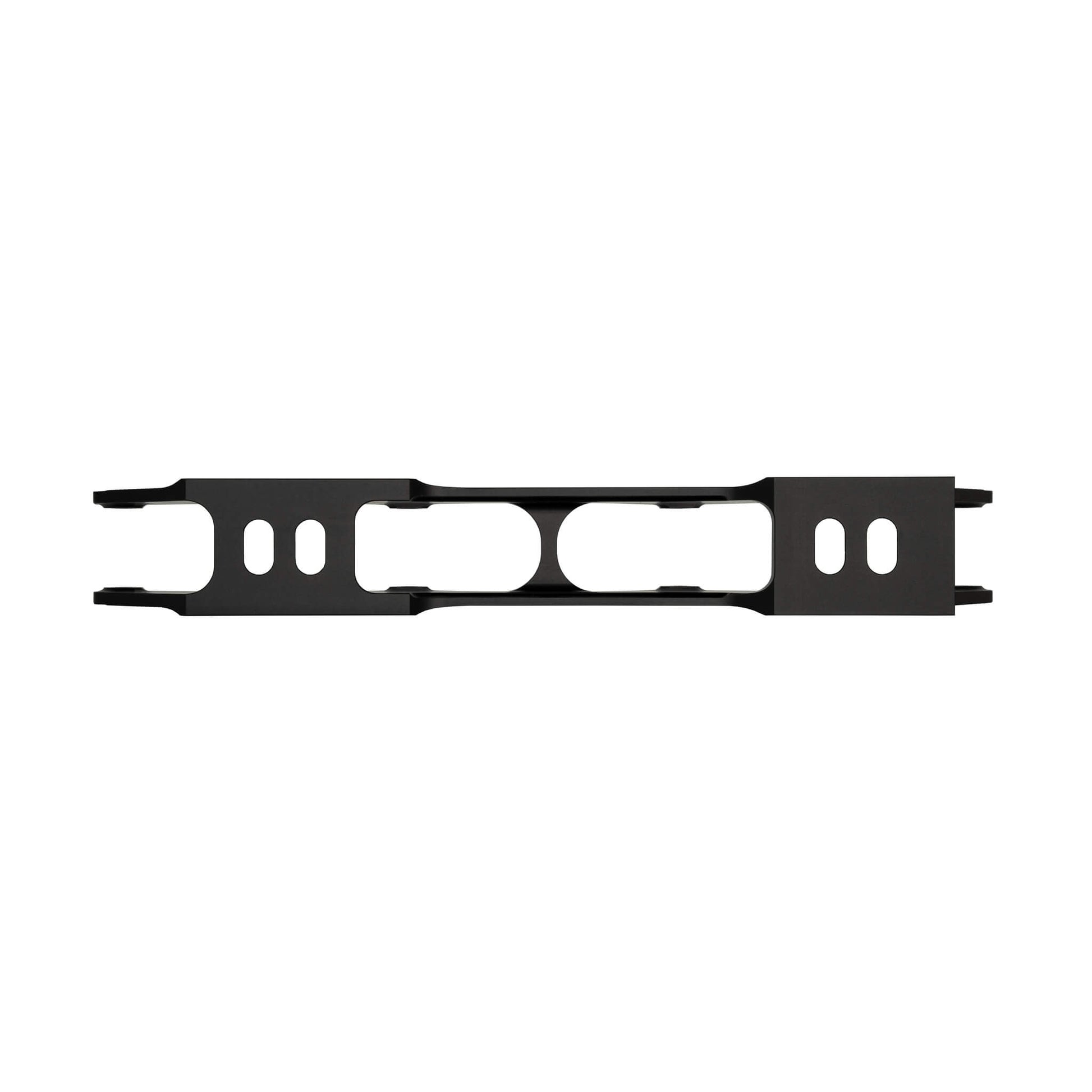

The Endless Swan Frame is engineered specifically for high impact, obstacle-based urban skating using 165 mm compatible skates.  In collaboration with skater and Beehive Skate Shop owner, Nicholas Swan, we created a streamlined design highly optimized for precise maneuvers and jumps, and fearless exploration of the cityscape.  The low-riding frame pairs a nimble wheelbase with the expertly-tuned Balanced Rocker for effortless navigation in tricky spots.  We iterated and tested the design rigorously over the last two years to ensure it was durable enough to stand up to the abuse Nicholas subjects his skates to.  The Swan frame is rigid, lightweight, fast, agile, and indestructible.  Choose Nicholas' signature Bronze colorway with sleek satin finish, or Stealth Black.

To enhance performance and stability for jumping and power transfer, this frame includes our patent pending Frame Locks.

Features
  • Single setup: 2x90 mm outer wheels + 2x84 mm inner wheel
    • Maintains compact overall length and low ride height
    • Ideal for stalls on small rails and obstacles
  • Balanced Rocker

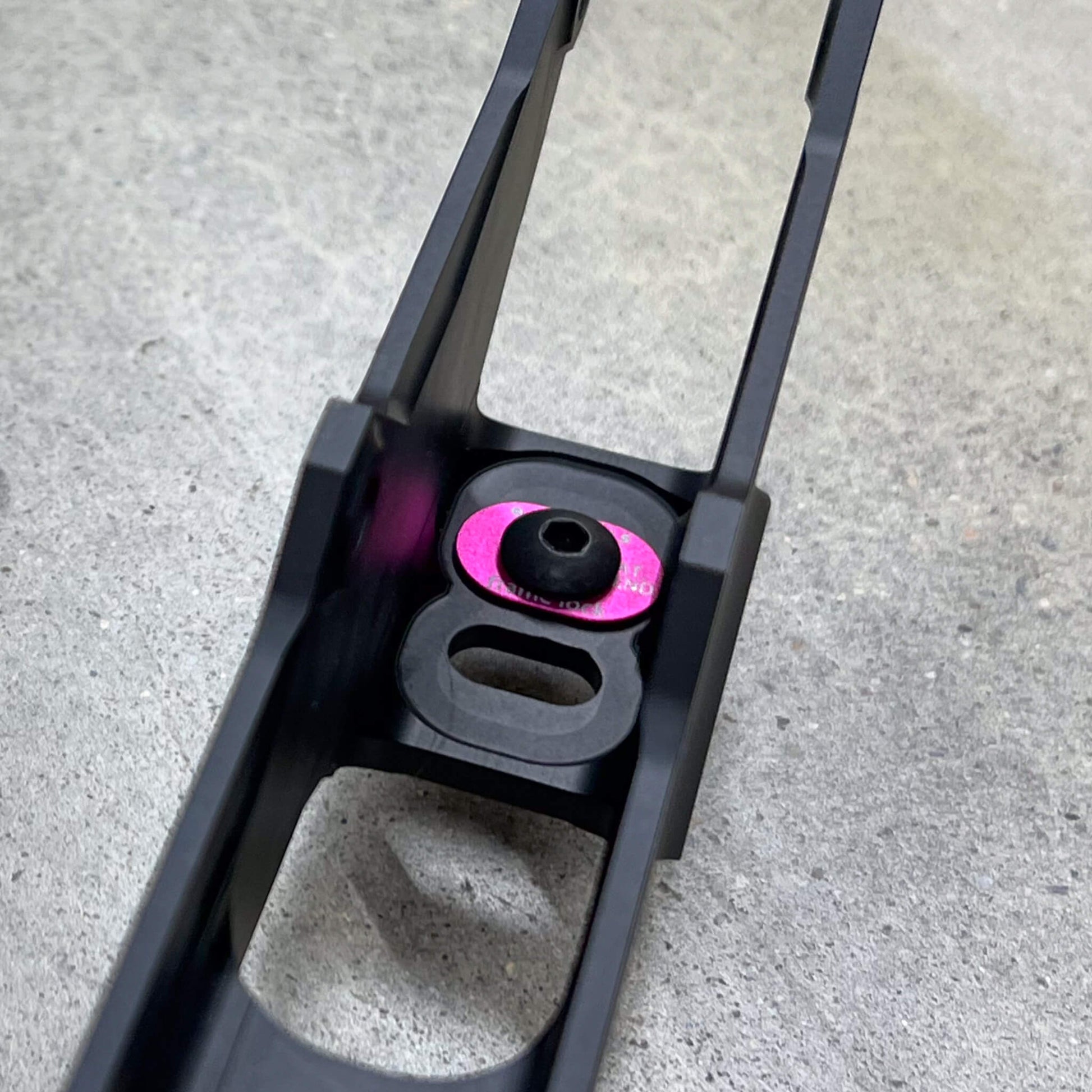

  • Frame Locks: enhance frame-to-boot coupling and prevent frame shifting due to hard use
  • Recommended for all skill levels
  • Recommended for boot sizes 45 and below
  • Mounting: 165 mm
    • Note: on Adapt skates our frames are not optimally centered
    • Not compatible with UFS boots (including FR Skates UFR)
  • Wheelbase: 261 mm
  • Brake compatibility:
    • Powerslide Urban Brake Size M (908058/2)
  • One frame set includes: 2 frames, 8 axles, 4 centered Frame Locks (patent pending)
  • CNC-machined from 6061-T6 aluminum
  • Weight = 275 grams, without spacers and axles
  • Patent Pending

Shipping info

New orders will ship in 3-5 business days when in stock. If out of stock in our store please check with our dealers who often have them available.

Need help choosing a frame?

Frame Recommendation Quiz

Have a question?

Check out our FAQ and Help page. We have an extensive knowledge base of help articles. You can also click the help icon in the lower right hand corner of this page.

Pre-order info

If this product is allowing pre-orders, visit this this link to learn about how our pre-orders work. We don't require any payment up front and only take payment when shipping.

Frame Lock compatible

This frame is compatible with our patent pending Frame Locks.

Learn more

Boot compatibility

There are three primary mounting standards: 165 raised heel, UFS, and Trinity. It's important to know which mounting interface your boot has so that you can choose the correct Endless frame. These three mounting types are not interchangeable with one another. In other words you cannot fit a Trinity frame to a UFS boot, nor can you fit a UFS frame to a 165 raised heel boot.

Learn more

Brake compatibility

We recommend the following Powerslide Urban Brakes:

Endless 80 / 84

  • 4x80: Powerslide Urban Brake Size S (908058/1)
  • 4x84: Powerslide Urban Brake Size M (908058/2)
  • 3x100: Powerslide Urban Brake Size L (908058/3)

Endless 90 / 90 LR

  • 4x90: Powerslide Urban Brake Size M (908058/2) - may require modification
  • 3x110 Powerslide Urban Brake Size L (908058/3), FR Skates 3W Brake (FRBRK-3W)

Endless 100 - not recommended with brakes

  • 4x100: Powerslide Urban Brake Size L (908058/3)
  • 3x110: none

Mercury finish info

The mirror finish on Mercury frames can reveal fingerprints, tiny scratches, marks, and nicks.  During normal handling and skating the frame may get scratched.  Wiping dust and debris off of the frame can also put micro-scratches in the finish.  Brand new Mercury frames may have micro-scratches from handling during manufacturing. There is no warranty on the finish of this product.
